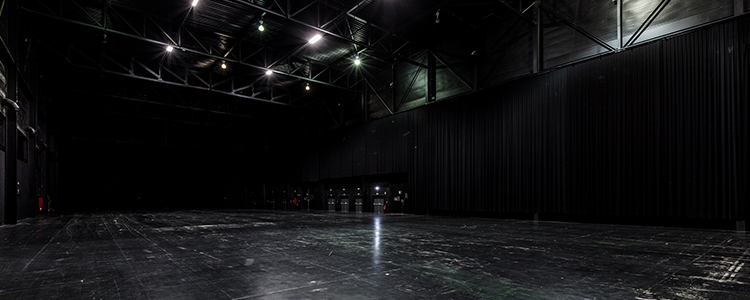

Studio 7 – Black Box
Dimensions
Power
Background
Capacity
Dimensions
| Stage Floor | 2400m2 (25.833ft.2) |
| Length | 80m (262ft) |
| Width | 30m (98ft) |
| Height to Beams | 14,6m (48ft) |
| Height to Ceiling | 16m (52ft) |
| Distance between beams | 10m (33ft) |
| Floor load | 1 ton/m2 (23.735lbs/ft2 |
| Maximum allowable distributed load on beams | 6.000kg/beam – 500kg/m distributed (13.230lbs/beam – 3.617lbs/ft) |
| Maximum allowable point load on beams | 7.500kg (16.537lbs) center point/3.500kg (7.717,5lbs) third point load |
| 2 Gates | 3,45m x 4?2m (11.27ft x 13,69ft) 4,00m x 3,8m (13ft x 12.39ft) |
Power
| 4 x 125A CEE |
| 4 x 32A CEE |
| 6 x 400A powerlock |
Background
| Black Backdrop | 190m (525ft) |
Capacity
| Dinner | 200 people |
| Reception | 2400 people |
| Academic | 3000 people |
